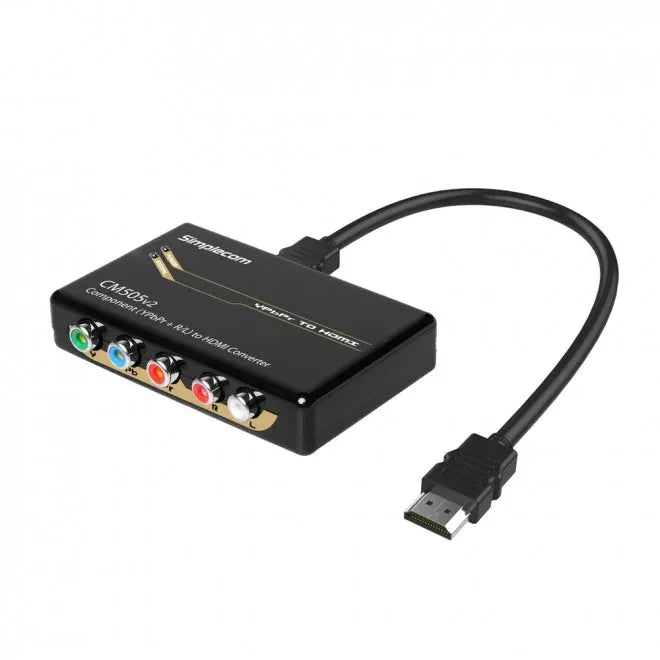

Simplecom CM505v2 Component (YPbPr + Stereo R/L) to HDMI Converter Full HD 1080p

(LS)Simplecom CM505v2 Component (YPbPr + Stereo R/L) to HDMI Converter Full HD 1080p(LS)

It can be applied for most component video devices, such as legacy STB, DVD players, game consoles, and more. Easy to use, plug and play, it supports 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth ensure no distortion of video or audio signal, and no lag in signal transmission.

Feature

Convert analog component video (YPbPr + Stereo R/L) to digital HDMI output
Powered by USB, plug into either USB wall adapter or a nearby USB port on PC or TV
Supports full range of component video resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Support 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth
Support 8bit per channel (24bit all channel) deep color
Support uncompressed 2 channel audio such as LPCM
Ideal for legacy component video devices such as STB, DVD players, game consoles
Specifications

Input: Component (YPbPr) + R/L Stereo
Output: HDMI
DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
Video Amplifier Bandwidth: 1.65Gbps/165MHz per channel
Vertical Frequency Range: 50/60Hz
Interlaced Resolutions (50&60Hz): 480i,576i,1080i
Progressive Resolutions (50&60Hz): 430p,576p,720p,1080p
Operating Temperature: 0°C to 70°C
Operating Humidity: 10% to 85% RH
Storage Temperature: -10°C to +80°C
Storage Humidity: 5% to 90% RH
Power Supply: USB
Power consumption (MAX): 5W
Package Contents

1x Component to HDMI converter
1x HDMI Lead
1x USB Power cable
1x USB Wall Adapter
Important Note

This converter is Component to HDMI one way only, doesn't work in reverse way
This adapter converts video format only, and doesn't change the resolution, the display screen has to support same resolut

Brand: Simplecom

Manufacturer Part Number: CM505V2

Barcode: 9350414002352

Warranty: 12 months

Weight: 0.14kg
