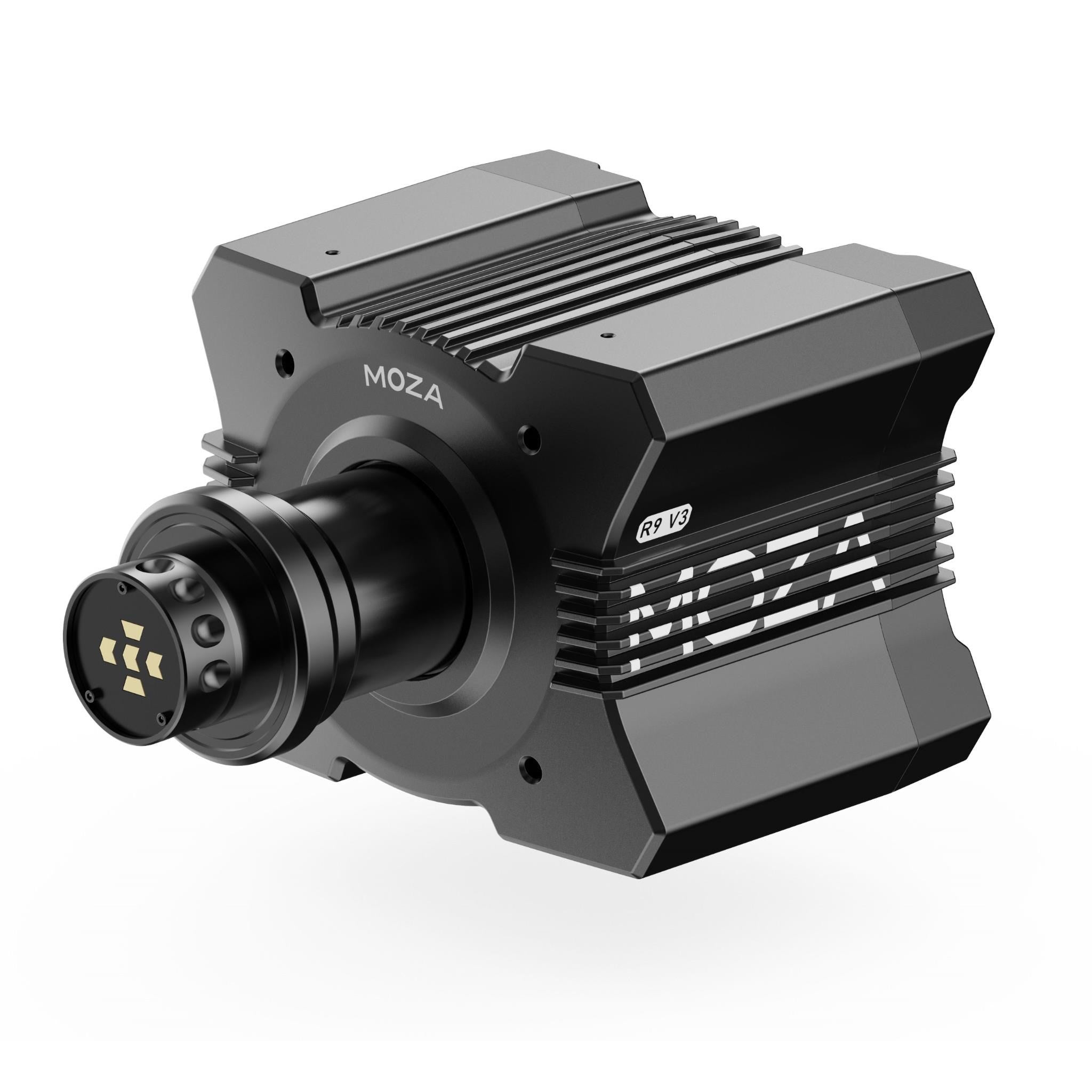

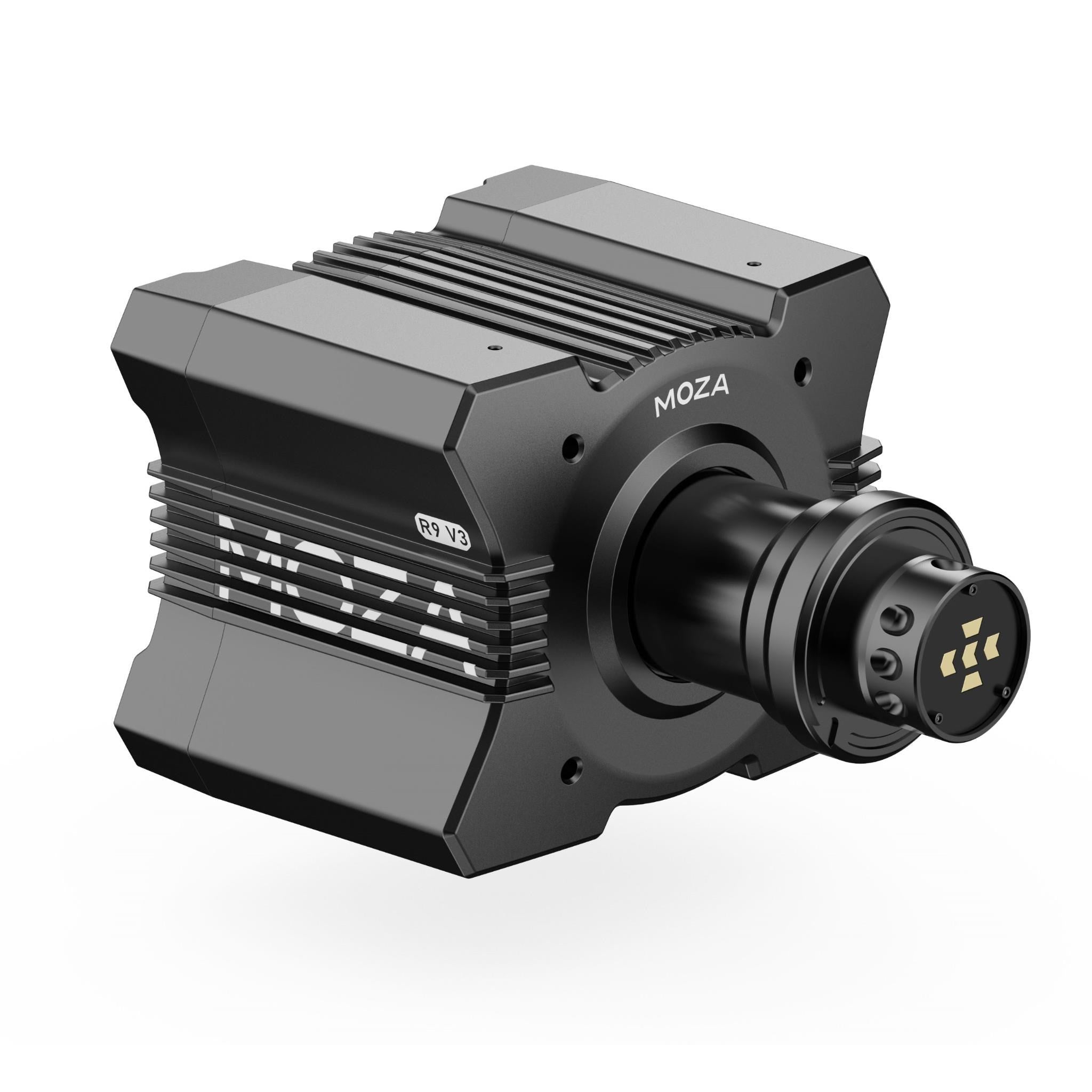

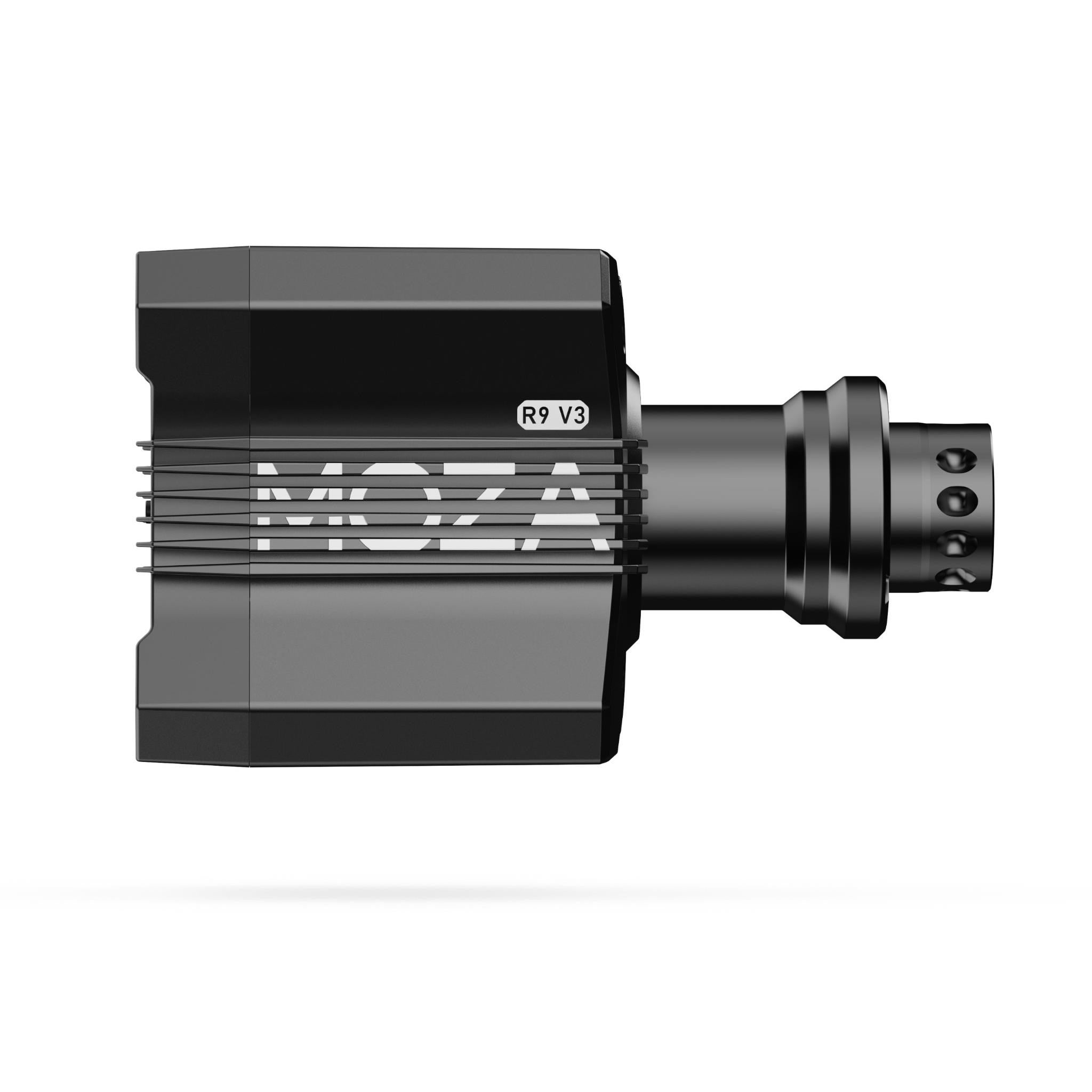

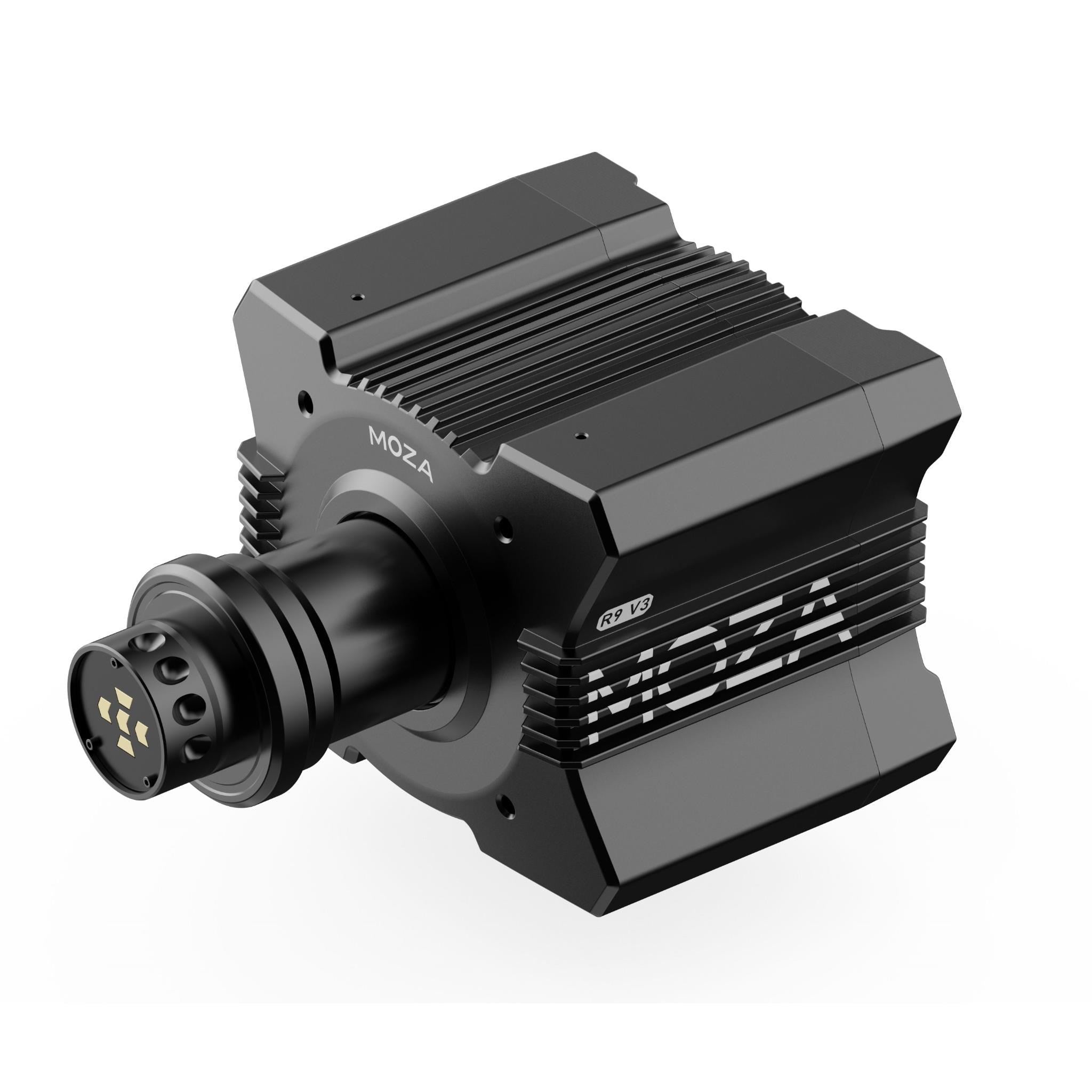

MOZA R9 V3 Direct Drive Wheel Base

The MOZA R9 is the wheelbase for the racers that want to take it seriously. This cutting-edge product offers 9 Nm of torque from a direct-drive servo motor. ensuring unparalleled performance.

Crafted with aviation-grade aluminium alloy. it combines minimum weight with maximum torque. With wireless power and communication. smart temperature control. and easy assembly. it’s a breeze to use. Experience control like never before with the MOZA Pit House Control Centre and enjoy seamless operation through the APP Cloud Control.

The V3 version supports iRacing 360Hz mode and features a 21-bit magnetic encoder with a resolution of up to 2.09 million.

Key Features

9 Nm of Torque from a Direct Drive Servo Motor
The R9's 9N·m of torque can simulate a full range of steering forces and car handling characteristics.

MOZA Pit House Control Centre
Developed by MOZA. the MOZA Pit House control centre allows a racer to check the status of a device. set the angles of base wheel. force feedback. paddles. steering wheel. and more. Quickly start a race with the right feedback settings using the built in presets. or user created presets.

Smart Temperature Control System
MOZA advanced system continuously monitors the temperature of the motor and electronic components and employs intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.

Aviation Grade Aluminium Housing
Unmatched quality and durability. The MOZA R9's whole housing is made of aviation grade aluminium alloy.

Industrial Conductive Slip Ring
The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.

Compact Design
The integrated motor design results in a compact size that still retains a standard 4 hole bottom mount pattern. It can be easily installed onto the vast majority of dedicated rigs and floorstands. In smaller spaces the base can be assembled with a desktop clamp. saving space whilst providing a convenient and enjoyable driving experience anytime. anywhere.

Technical Specifications

Platform: PC
FBB Drive System: Direct Drive
MOZA Pit House Control: Support
Max Wheel Rotation: 90~2700°
Housing Material: Aviation Grade Aluminium Alloy
Colour: Black
Peak Torque: 9 Nm
Peak Power: 180W
Input Voltage: 110V~220V AC —> 36V DC
USB Refresh Rate: 1000Hz
Encoder Resolution: 21-bits
Indicator: YES
App Functions: Supported
Quick Release: Supported
Connection Ports: Power. DC Input. Pedals. E-stop. USB. Dash. Shifter. Handbrake
Mounting Method: Bottom mount
Side Mount Option: With optional side mount bracket
Desk Clamp: Optional
Emergency Stop Switch: Optional
Online Firmware Upgrade: Applicable
Firmware Update: Applicable

What's in the box

R9 Direct Drive Wheel Base
User manual
Warranty card
Power supply
USB cable
Toolkit

• Manufacturers Warranty: 1 Year
