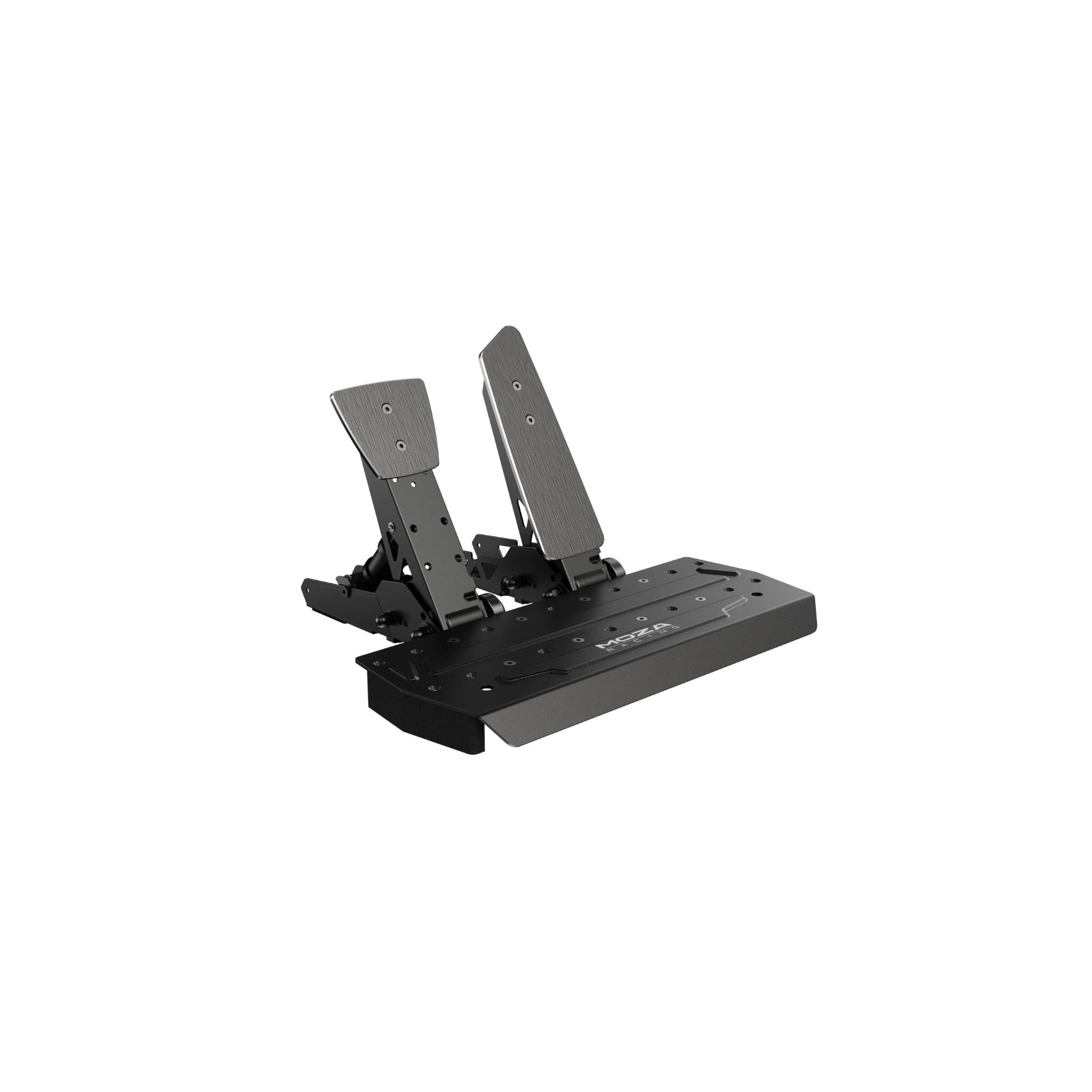

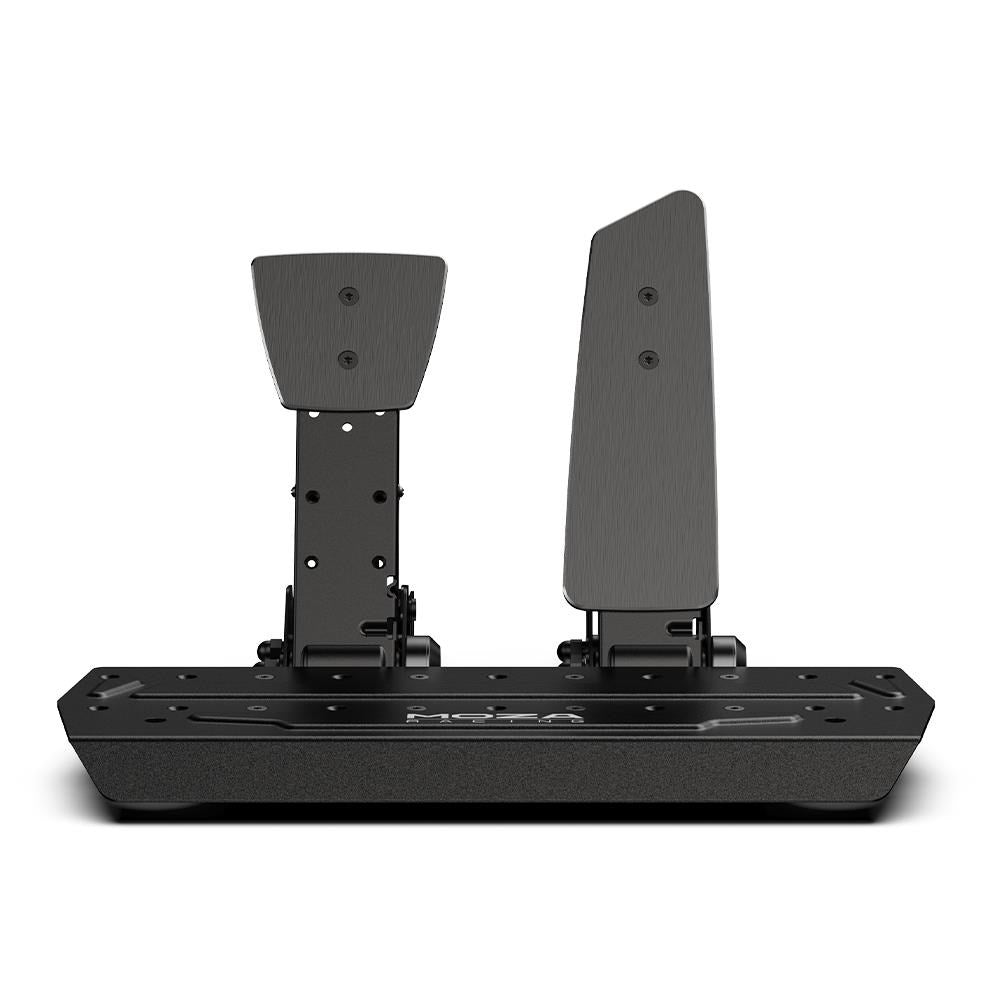

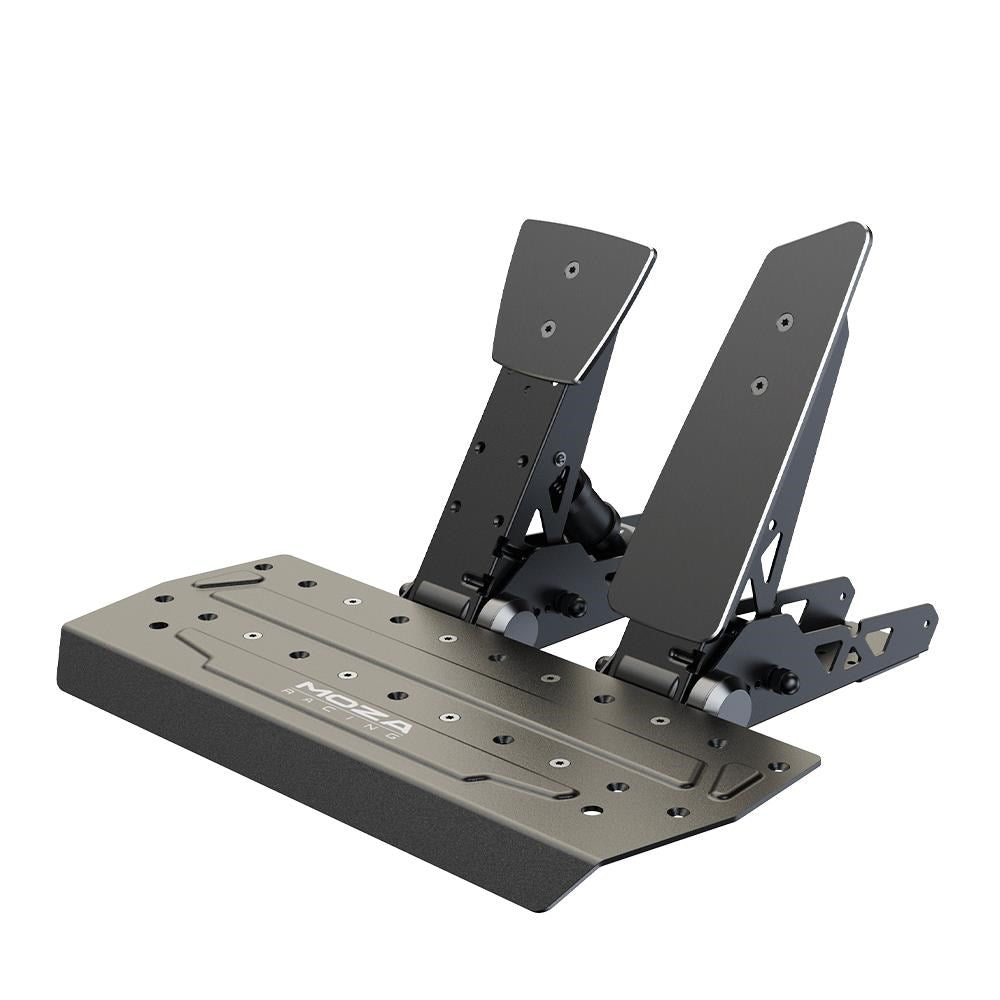

MOZA SR-P Pedals (Throttle & Brake)

SR-P Pedals are compatible with other products as you can use them with USB together with any other brand.

Clutch not included. Not compatible with SR-P Lite Clutch Pedal and SR-P Lite Brake Pedal Performance Kit.

Upgrade your racing experience with the MOZA SR-P pedals. designed for top performance and precision.

Crafted with high-strength steel and featuring a high-precision pressure sensor capable of detecting up to 100KG. these reliable pedals ensure solid responsive inputs. A 15-bit high-precision magnetic encoder captures every movement with exceptional detail. Customize your setup with adjustable pedal spacing for optimal comfort and directly connect it to your PC via USB for seamless integration.

Experience smooth and controlled braking with the combined braking spring and damping block.

Key Features

High-Strength Steel Construction
Built with reinforced steel for superior durability and rigidity. the SR-P pedals deliver consistent performance under high loads and intense use.

15-bit Magnetic Encoders for Precision Input
Equipped with 15-bit (32.768 PPR) magnetic encoders on all pedals. ensuring ultra-precise throttle. clutch. and brake response in every race.

100KG Load Cell Brake for Realistic Pressure Feedback
The high-precision load cell sensor detects brake pressure up to 100KG. offering realistic. controllable braking — just like a real race car.

Fine-Tuned Pedal Feel with Spring & Damper System
The brake pedal uses a spring and damping block combo for more realistic resistance. Expand further with the SR-P Accessory Kit for six unique pedal feel profiles.

Dual-Sensor Fusion for Smooth. Natural Braking
Combining both pressure and angle sensors. the SR-P brake delivers a progressive. tunable feel that adapts naturally from initial press to full brake force.

Technical Specifications

Material: High-strength steel
Plate Material: High-strength steel
Color: Black
Brake Sensor: Load cell + angle sensor
Max Capacity: 100KG
Throttle Sensor: Angle sensor
Clutch Sensor: Angle sensor
Angle Sensor Resolution: 15-bit (32768ppr)
Pedal Spacing: Adjustable
Pedal Plate Height: Adjustable
Pedal Connection Port: USB
Pedal Travel Software Adjustment: Yes
Pedal Travel Reverse Function: Yes
Anti-Slipping Pad: Included
Size: 410×310×170 (mm) – Pedal Set of 2 (No clutch)
Mass: 4.3KG – Pedal Set of 2 (No clutch)

What's in the box

MOZA SR-P Pedals (No clutch)
Type A to Type B USB Cable
Toolkit

• Manufacturers Warranty: 1 Year
