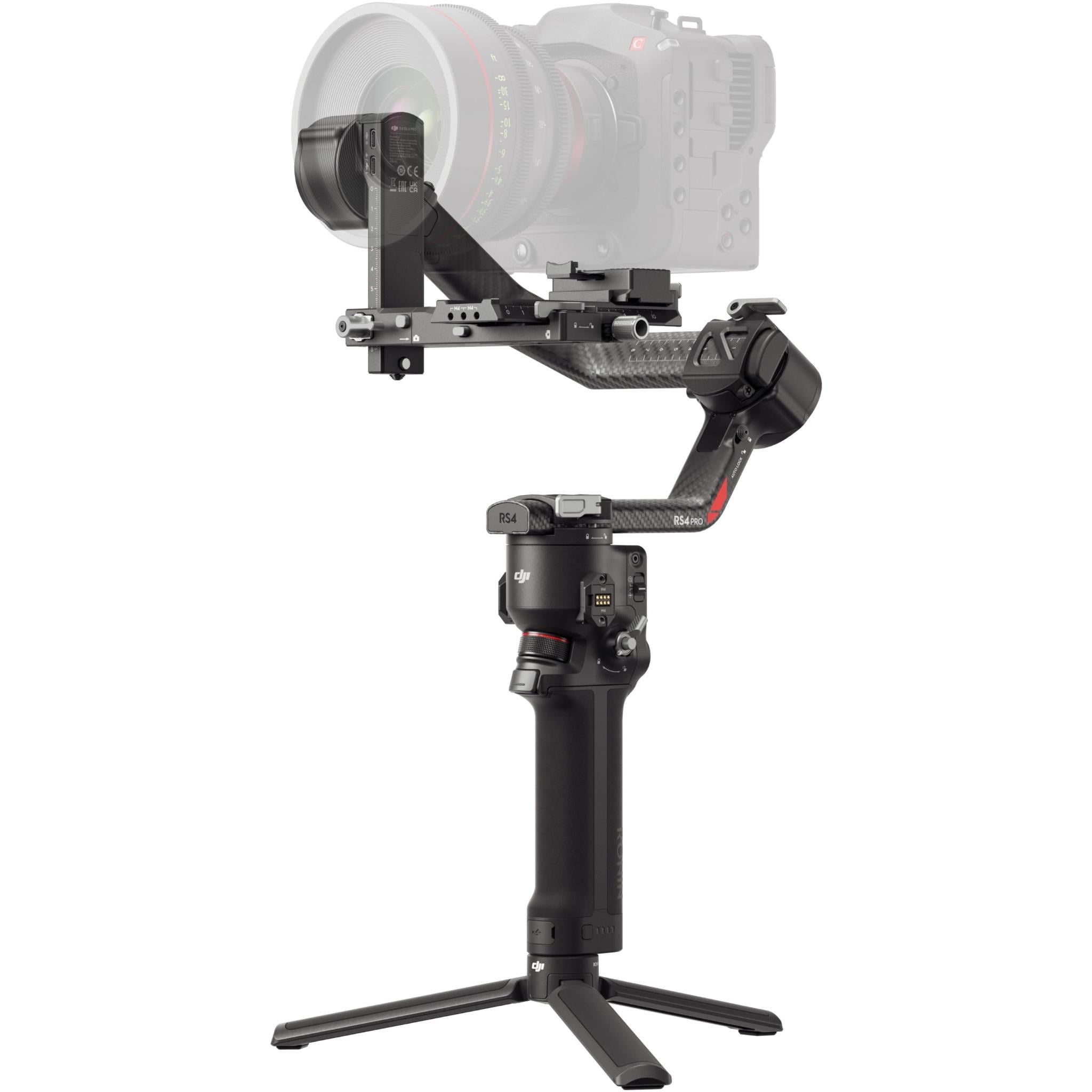

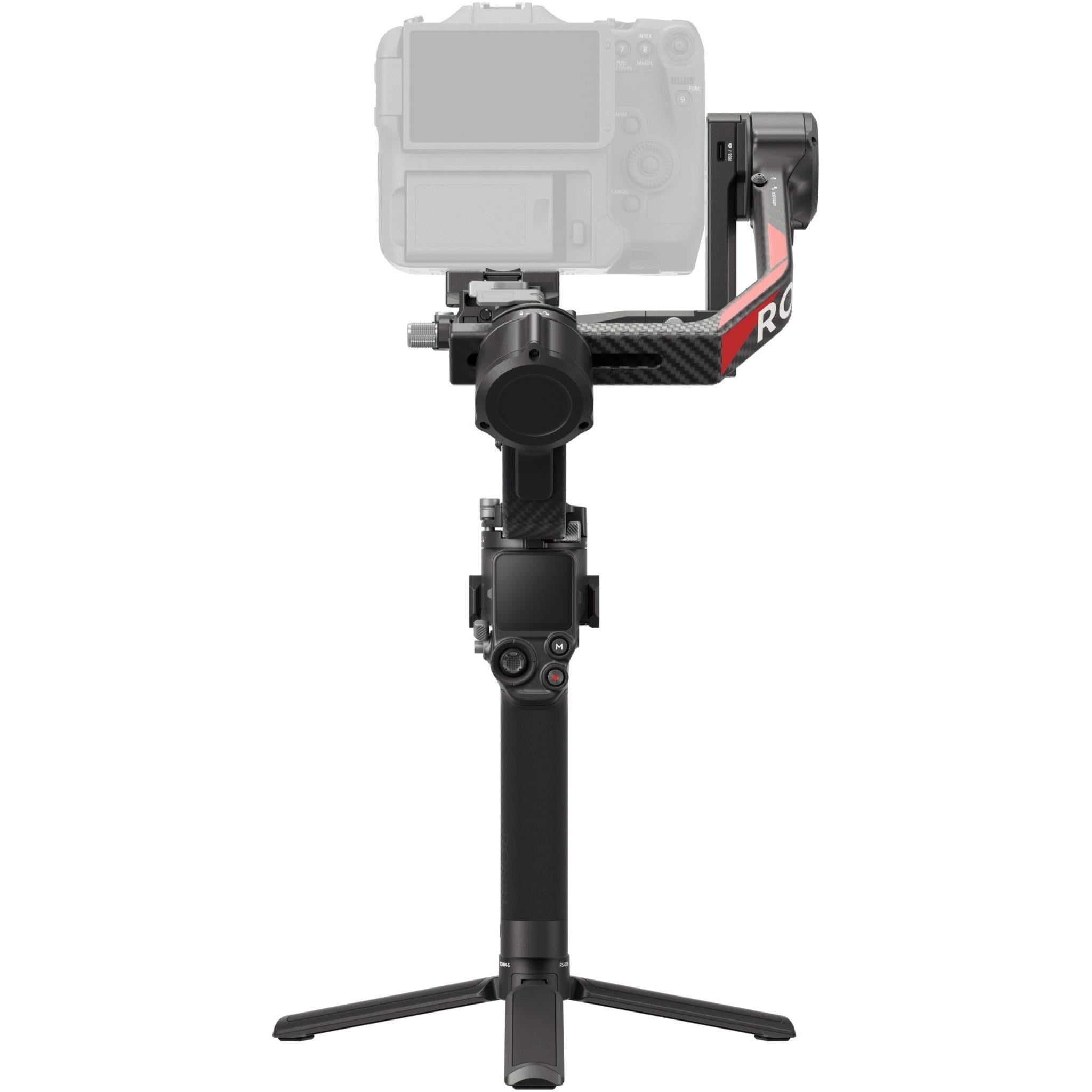

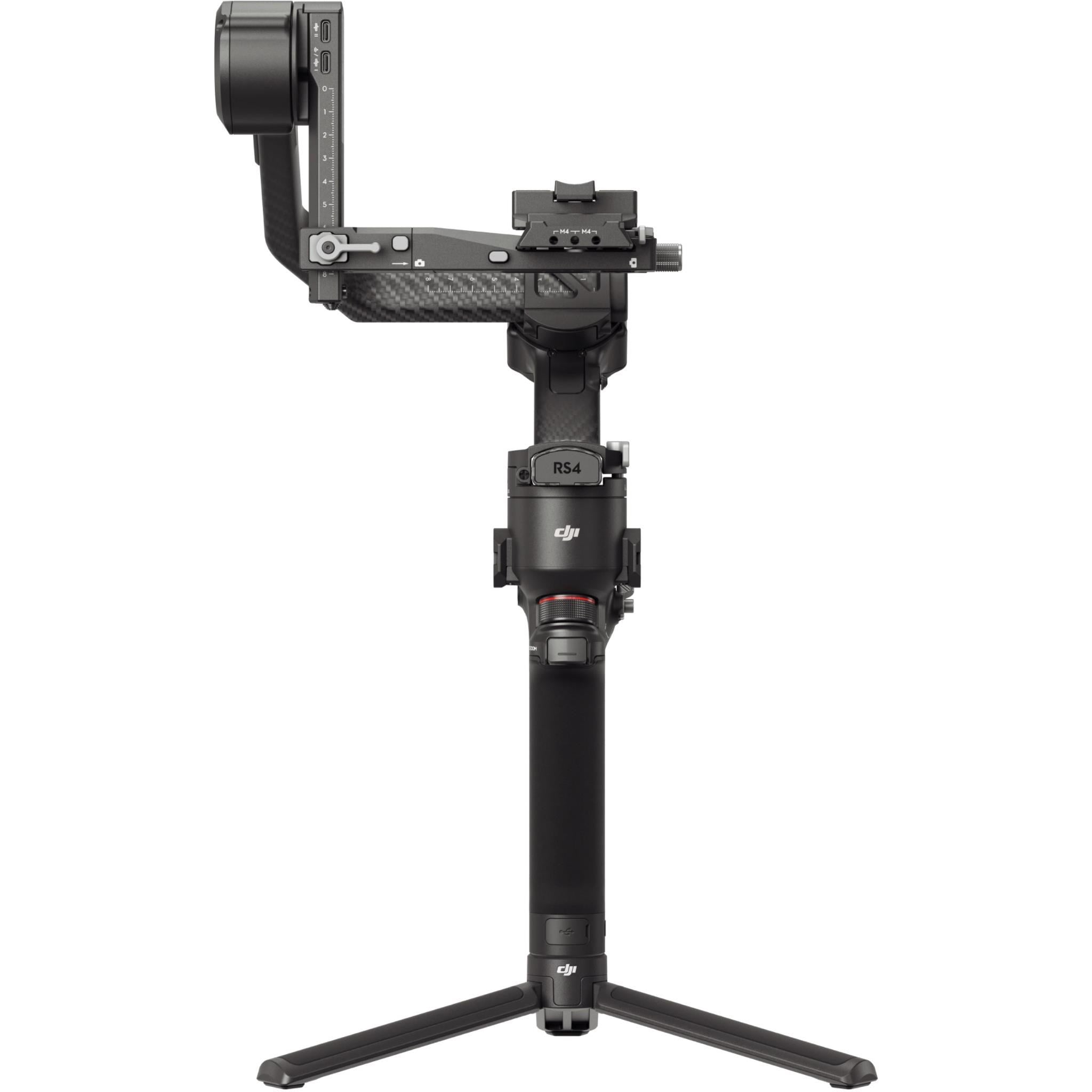

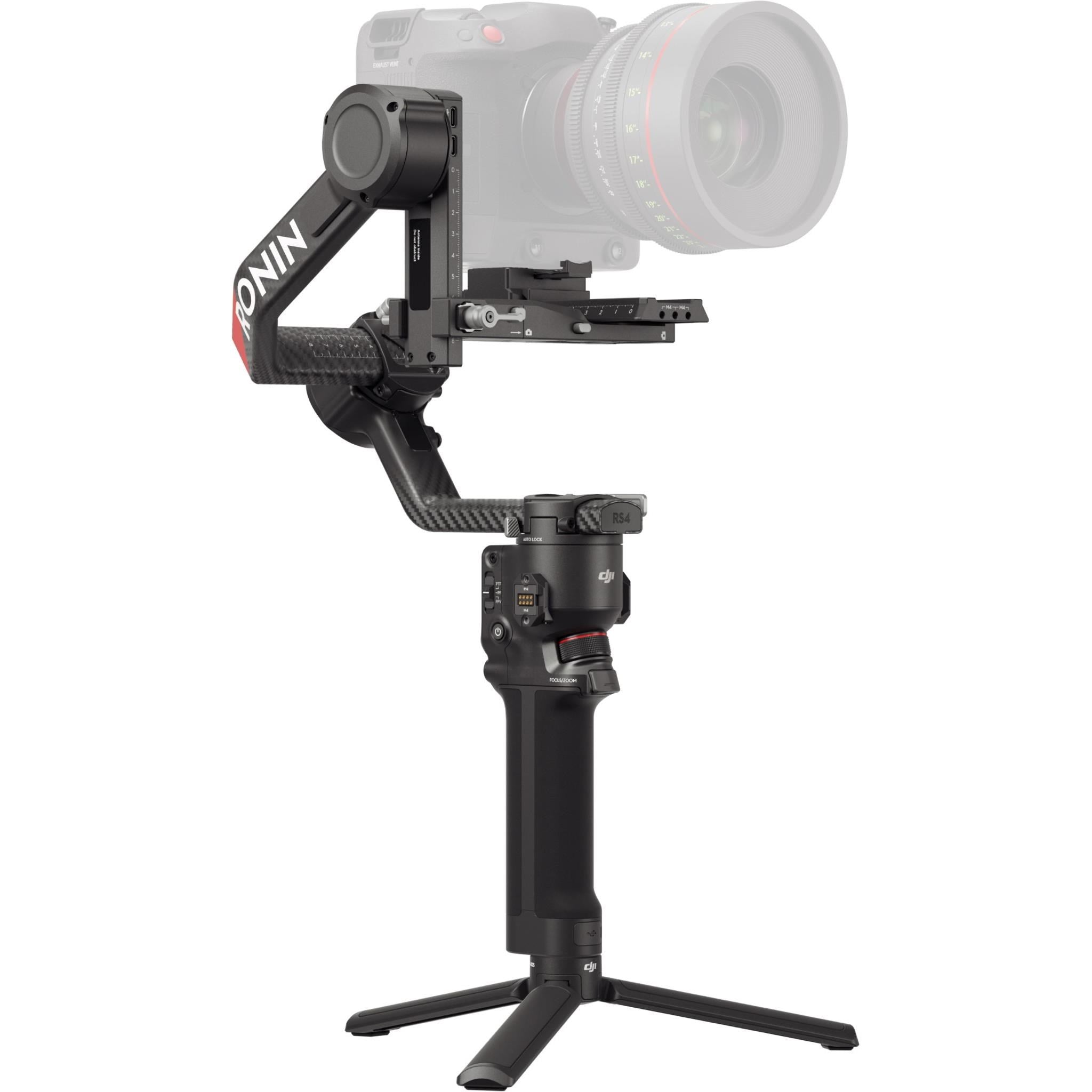

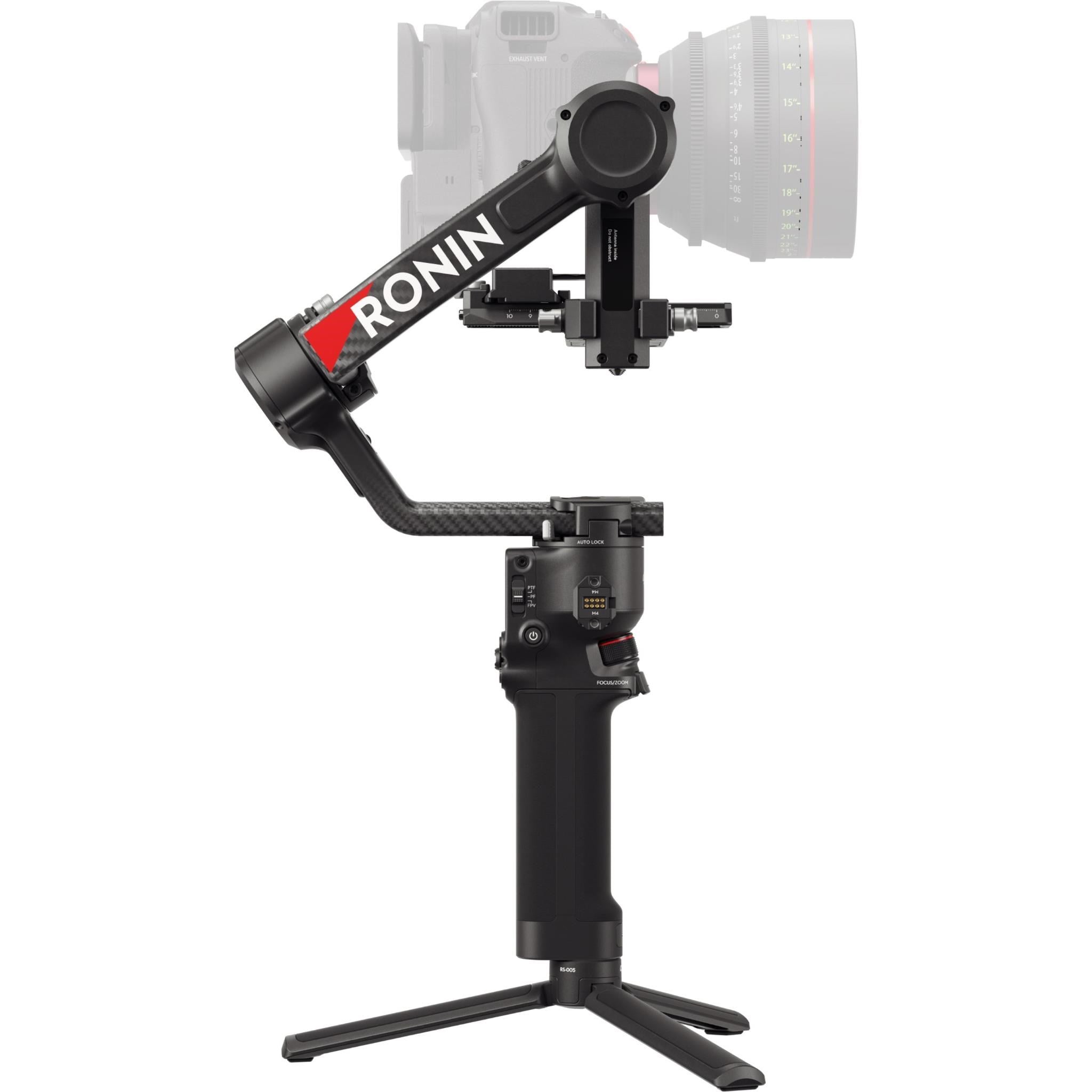

DJI RS4 Pro Gimbal

The DJI RS 4 lightweight commercial stabilizer supports next-generation native vertical shooting with enhanced operation efficiency. improved stabilization performance. and an upgraded accessory ecosystem. It empowers solo cinematographers with a more professional and efficient creative experience and the toolset to tell gripping visual stories.

Key Features

2nd-Gen Native Vertical Shooting
The newly designed gimbal horizontal plate eliminates the need for additional accessories. Cinematographers can easily switch to vertical shooting. [1]

Approx. 2.4x Battery Runtime. All-Scenario Solutions
Extend runtime up to 29 hours [2] with the RS BG70 High-Capacity Battery Grip.[3] And chose from various handheld configurations with RS SDK protocol. [4]

Supports Dual Focus & Zoom Motors With Remote Control
Get precision focus and zoom simultaneously by installing two Focus Pro Motors. [5] Pair with the Focus Pro Hand Unit and High-Bright Remote Monitor [2] and get refined remote gimbal and focus control.

LiDAR Focusing: 76.800 Ranging Points Within 20 m [6]
Solo cinematographers can now experience more accurate. distant. and intelligent LiDAR autofocus. [7] The next-gen ActiveTrack Pro can firmly lock on to a moving subject.

LiDAR & Transmission Interconnectivity
With the Focus Pro LiDAR to DJI Transmission Cable Hub. [2] RS 4 Pro can power LiDAR and the DJI Video Transmitter simultaneously. [2] achieve LiDAR Waveform. [8] and convenient control.

4.5kg (10lbs) Payload Capacity With a 20% Increase in Motor Torque [9]
The carbon fiber axis arms are capable of accommodating mainstream mirrorless/cinema camera and lens setups. The gimbal provides greater power redundancy once balanced.

Specifications
Max Payload - 4.5 kg (10 lbs)
Axis Locks - 2nd-Gen Automated Axis Locks
Axis Arm Material - Carbon Fiber
Fine-Tuning Knob - Yes
OLED - 1.8" OLED Full-Color Touchscreen
Stabilisation - 4th-Gen RS Stabilization Algorithm
Joystick Mode - Zoom/Gimbal Control
2nd-Gen Native Vertical Shooting
Battery Design- Detachable
Max Battery Runtime - 29 Hours
Ecosystem - DJI PRO Ecosystem

What's in the box?
1x Gimbal
1x BG30 Battery Grip
1x Quick-Release Plate (Arca-Swiss/Manfrotto)
1x Extended Grip/Tripod (Metal)
1x Briefcase Handle
1x Lens-Fastening Support (Extended)
1x Multi-Camera Control Cable (USB-C. 30 cm)
1x USB-C Charging Cable (40 cm)
1x Screw Kit
1x Carrying Case
1x DJI Logo Sticker

1. The gimbal requires rebalancing after switching between horizontal and vertical shooting.
2. Sold separately.
3. Measured in a 25° C (77° F) indoor environment with the gimbal balanced in a level and stationary state until the battery level reached 3% (with the battery grip only powering the gimbal).
4. Setting up any of the shooting solutions requires one or more accessories that are sold separately.
5. The DJI RS 4 Pro Combo includes a DJI Focus Pro Motor. For the standalone version. the motor is sold separately.
6. Requires enabling the 2x zoom display function on the DJI RS 4 Pro touchscreen.
7. Requires the DJI Focus Pro Motor.
8. LiDAR Waveform is only available when DJI RS 4 Pro is paired with a DJI Focus Pro Motor.
9. Compared with DJI RS 3 Pro.
