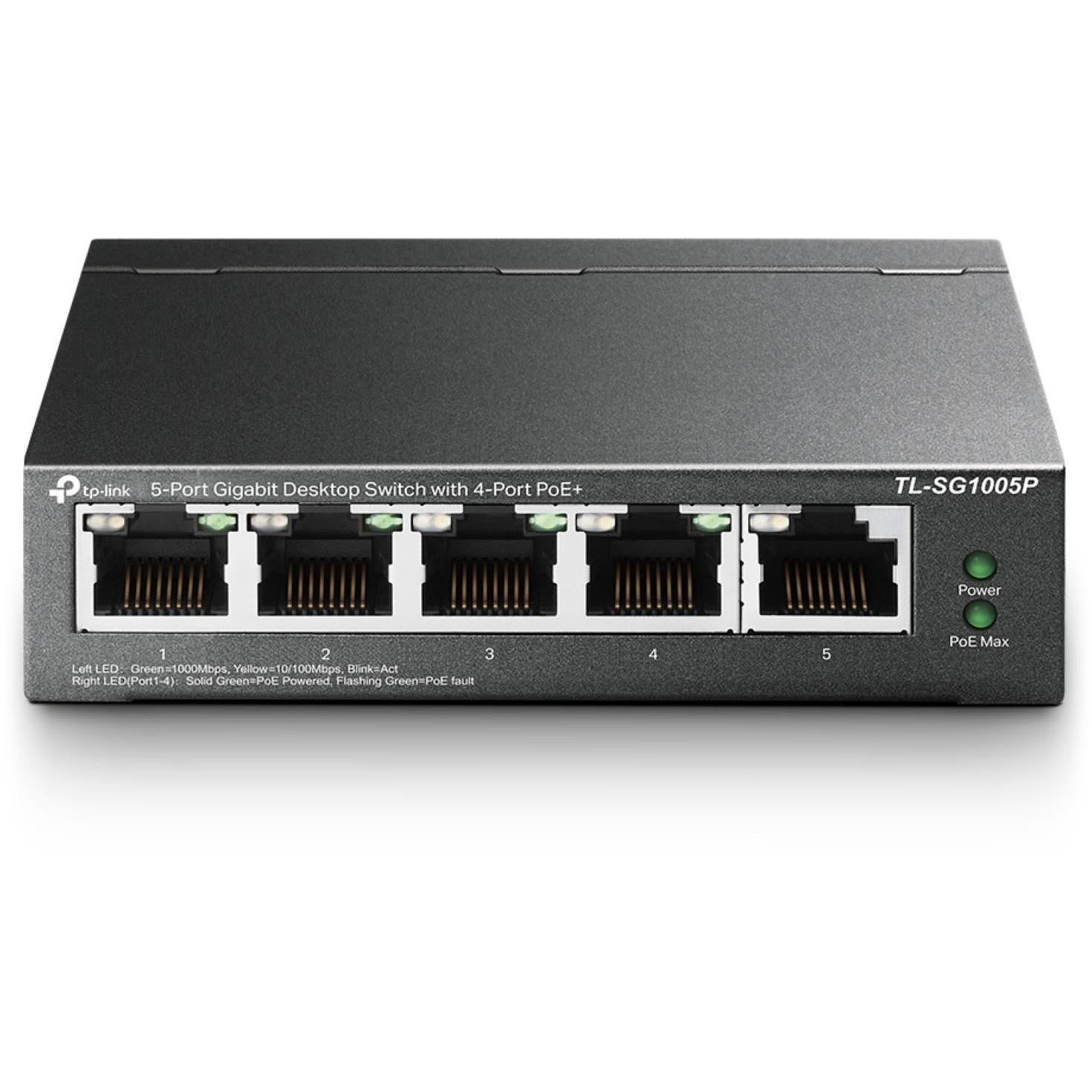

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE

TL-SG1005P is a 5 10/100/1000 Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply
power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation. the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are
no power lines or outlets. where you wish to fix devices such as APs. IP Cameras or IP Phones. etc.

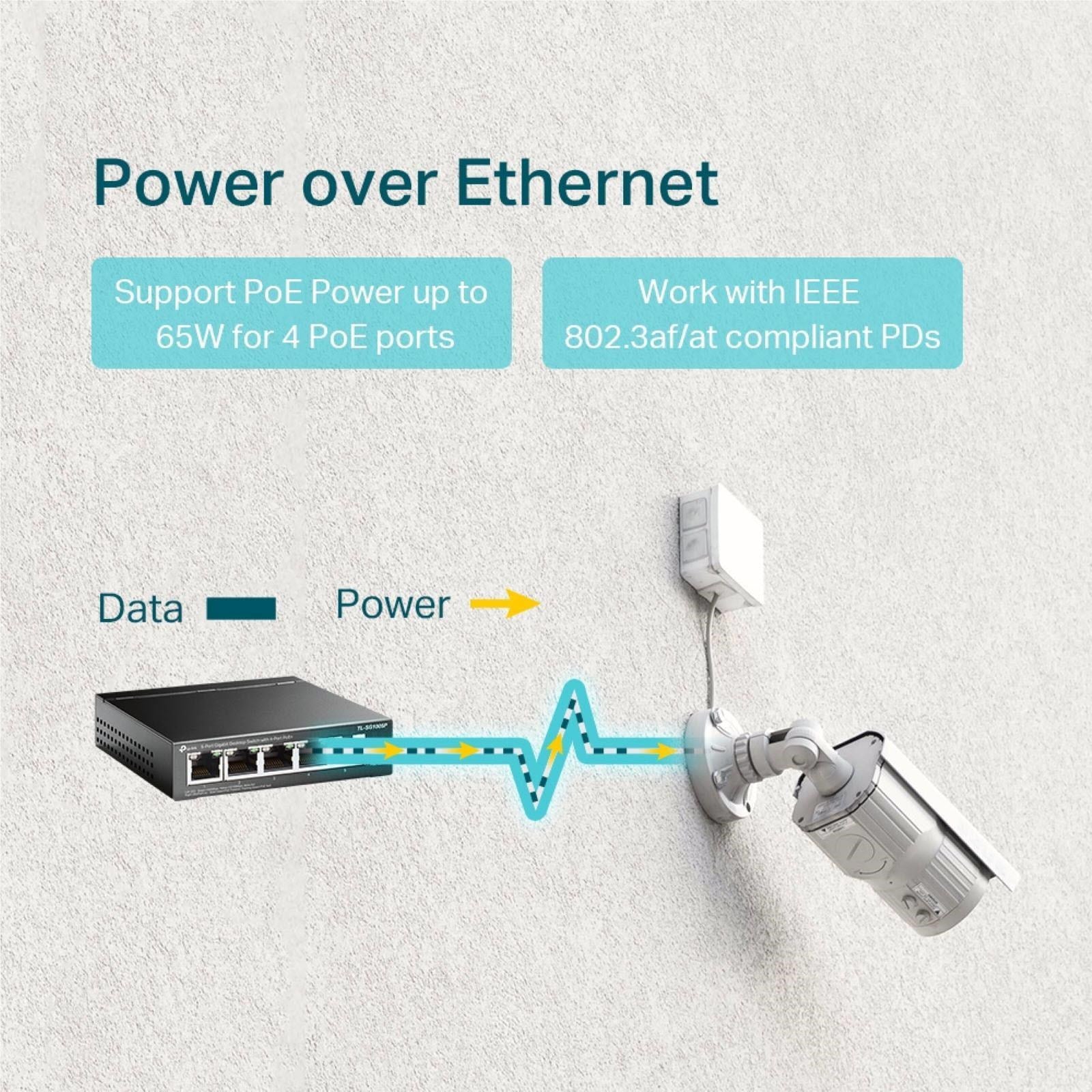

Power Over Ethernet
Four of the 5 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE
802.3af/at compliant Powered Devices (PDs).

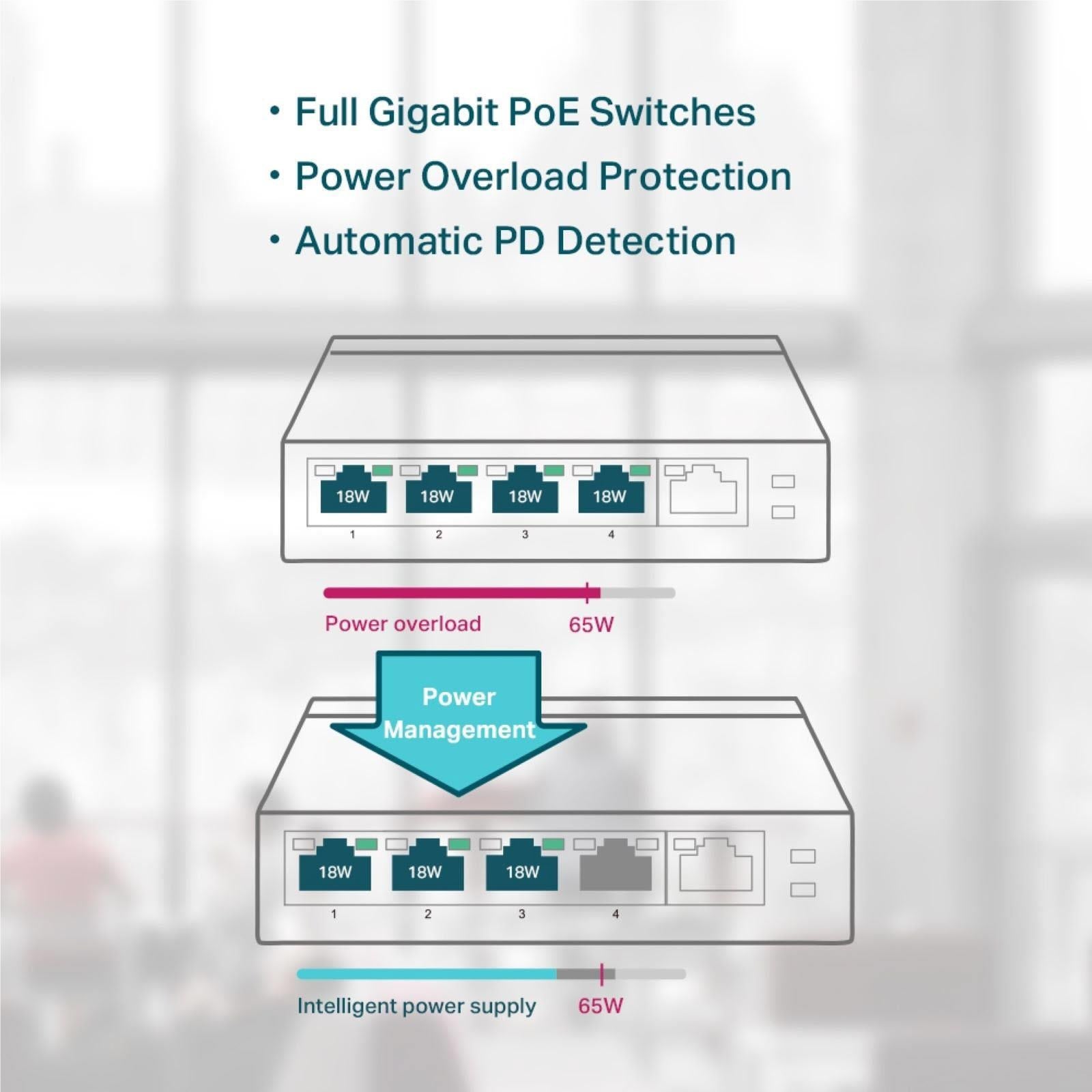

Overload Arrangement
The switch has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is over the PoE power budget. a priority will be arranged
among the PoE ports. then the system will cut off the power of the lowest-priority port.

Intelligent Power Management
Priority (port 1>port 2>port 3>port 4): This function will help protect the system if the system power
becomes overloaded. Take TL-SG1005P as an example. If port 1. 2 and 4 are consuming 15.4 W
respectively. and an additional PoE device with 19 W is inserted to port 3. the system will cut off the
power of port 4 to compensate for the overload.
The switch is easy to install and use. It requires no configuration and installation. With desktop and
wall-mountable design. outstanding performance and quality. the TP-Link 5-Port Gigabit Desktop
Switch with 4-Port+ PoE is a great selection for expanding your network.
Easy of Use

Highlight Performance
• (For TL-SG1005P) Up to 250 m PoE power supply and data transmission under Extend Mode for port
1-4.**
• (For TL-SG1005P) With PoE Auto Recovery. the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-8. When the switch finds that a PD stops sending data packets to the switch for a long period. the switch will reboot it automatically.

Features

- 5 10/100/1000Mbps RJ45 ports
- With four PoE ports. transfers data and power on one single cable
- Working with IEEE 802.3af/at compliant PDs. expands your network
- Supports PoE Power up to 30 W for each PoE port
- TL-SG1005LP supports PoE Power up to 40 W for all PoE ports. and TL-SG1005P supports up to 65 W*
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- IGMP Snooping optimizes multicast application
- Plug and play. no configuration and installation required
- Up to 250m data and power transmitting range under Extend Mode** (For TL-SG1005P)
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the
dropped or unresponsive PD devices (For TL-SG1005P)

Note:
PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will
vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10Mbps. Actual transmission
distance may vary from the quality of the cables.

• Manufacturers Warranty: 5 Years
